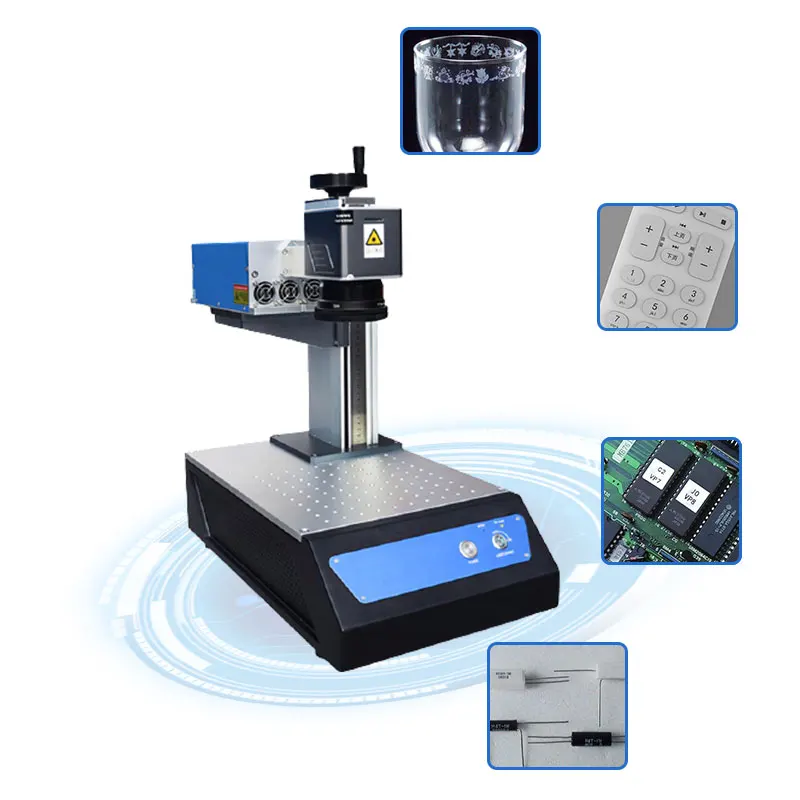

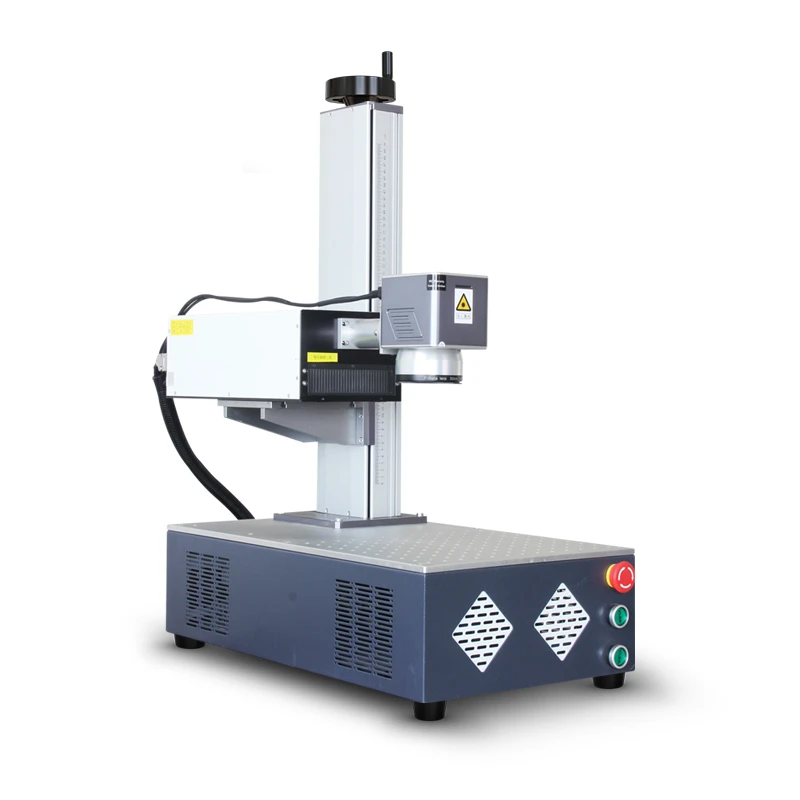

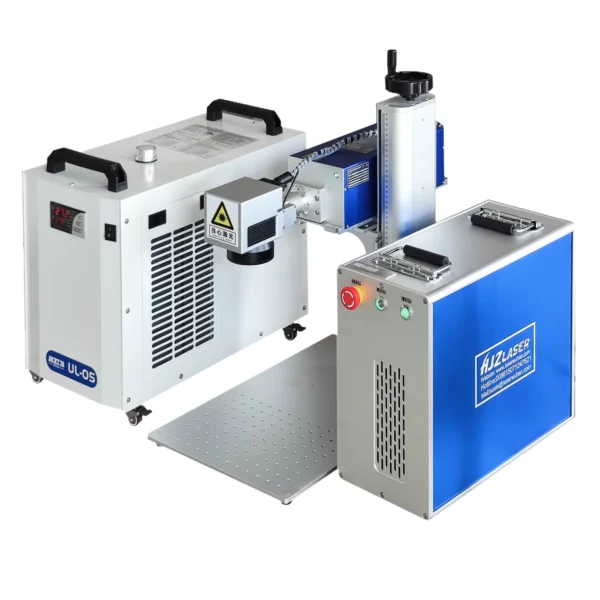

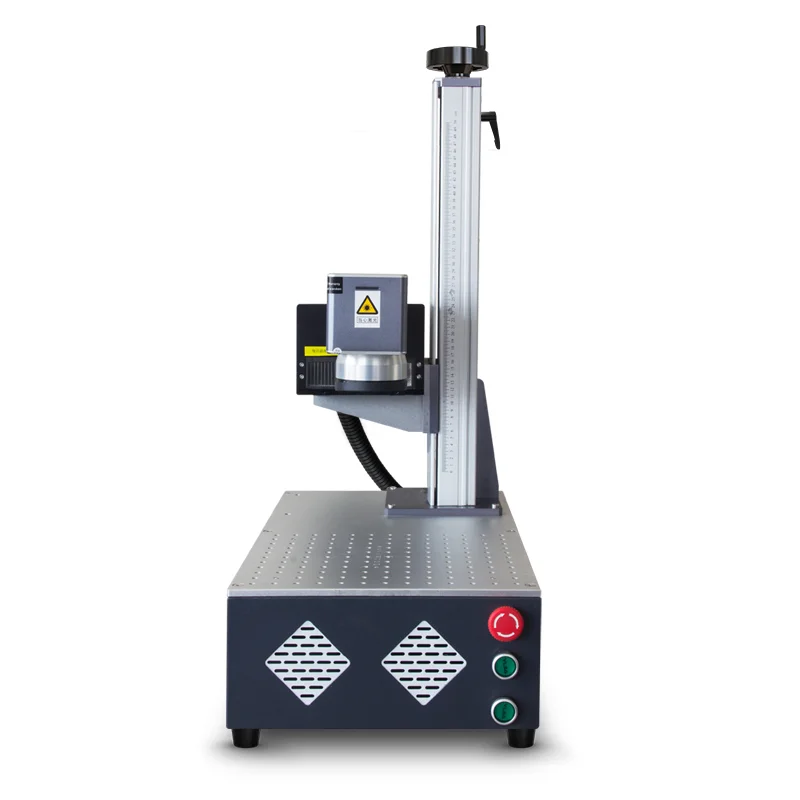

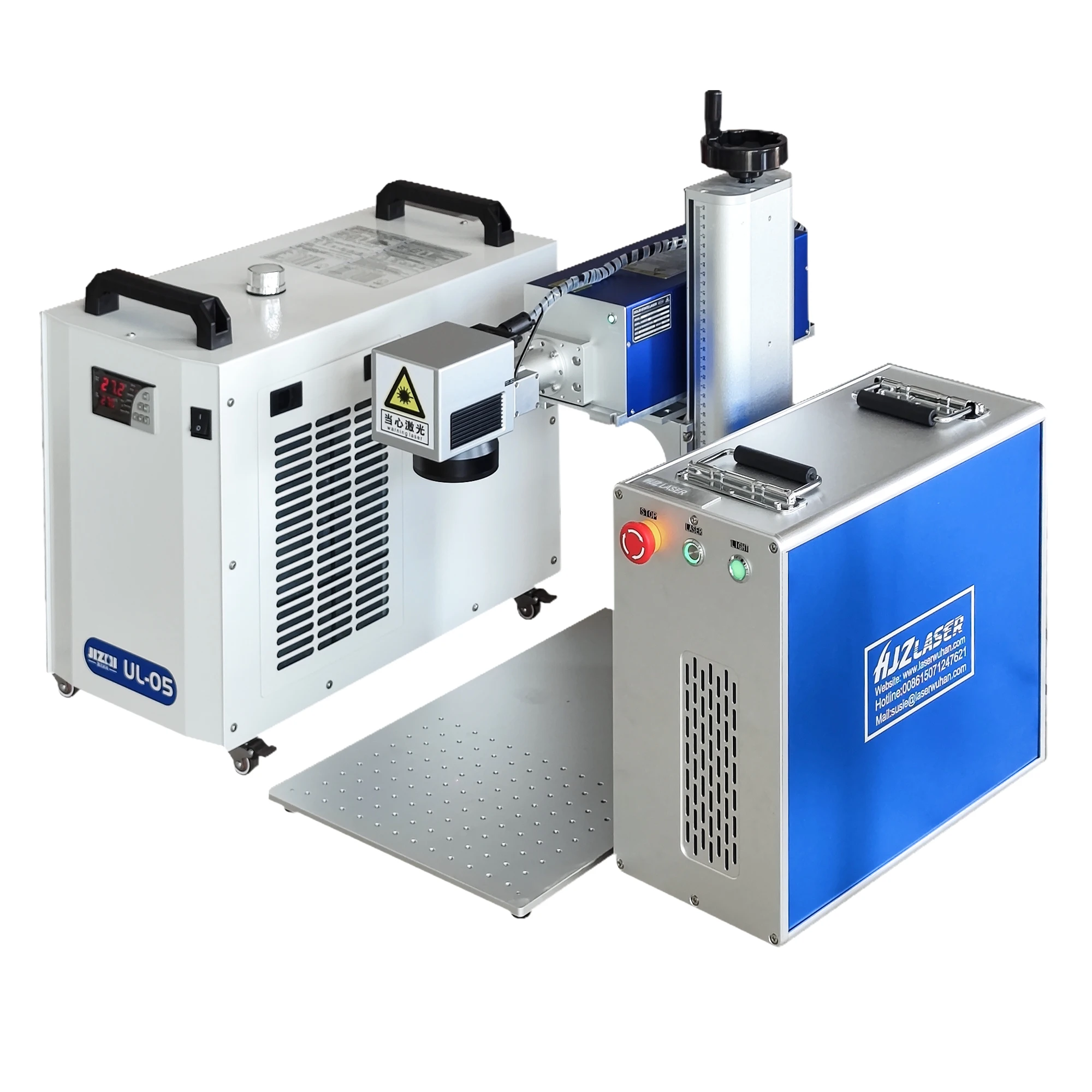

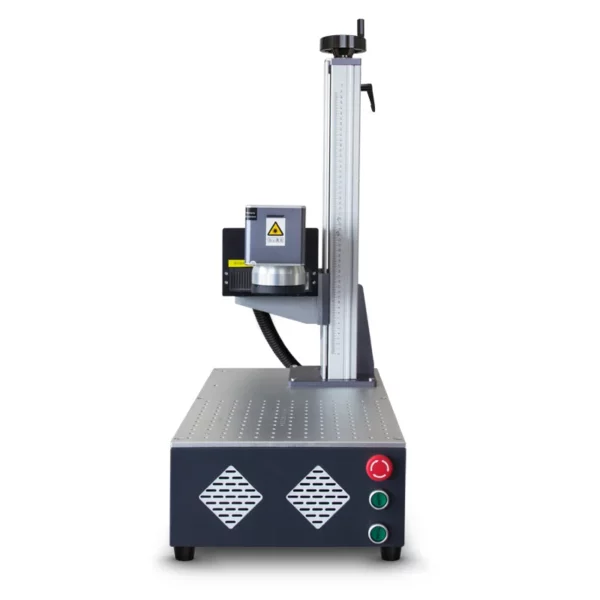

Machine de gravure laser UV 5 W de haute qualité avec source JPT, marquage cristal efficace, prend en charge le format graphique AI, état neuf

model number

HJZ-DB-01

power(w)

100W
20W
30W
50W

High quality 5W UV Laser Engraving Machine with JPT Source Efficient Crystal Marking Supports AI Graphic Format New Condition

Product descriptions :

1. Humanized design: HJZ Laser take full consideration of the user ‘s experience to improve working efficiency and simplify operations of the laser etching machine.

2. High-quality imported laser source: IPG, Raycus, Max, JPT. 20W 30W 50W 100 watt laser source is available, stable laser beam, smooth and fine marking lines.

3. High-speed marking: shorten the time for processing the work-piece, and increase the working efficiency.

4. High-efficiency electro-optical conversion: zero-power coupling loss, no have consumables, and no need later maintenance.

5.
10 years of operation life
: this fiber laser marking machine applied for metal can meet for
24-hour continuous and stable processing.

6. High performance, high reliability control system:
friendly interface, stable and reliable system.

7. Low power consumption: low cost, only 0.5 kw/h.

Product Description

Specification

Technical parameter
Item / Model	HJZ-DB-01 30W
Laser source	Famous
Laser power	30w / 60w
CO2Laser type	Co2 laser
Graphic Format Supported	DXF,PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO,
Marking speed	≤8000mm/S
Max.Marking Depth	≤0.4mm
Laser Wavelength	1064nm
Marking lines	0.06-0.1mm
Minimum line width	0.06mm
Minimum character	0.15mm
Resolution ratio	0.01mm
Graphic format supported	BMP, PLT, DST, DXF, AI
Software supported	TAJIMA, CorelDraw, Photoshop, AutoCAD
Equipment Dimensions	755390360mm (different model has different size,detailed can be confirmed with sellers)
Net/Gross Weight:	26/44kg(different configuration has small difference)
Unit Power	≤500W
Optional Spare Parts	Rotary/Protection glasses/outside red light/night light and other optional customized parts and so on.
